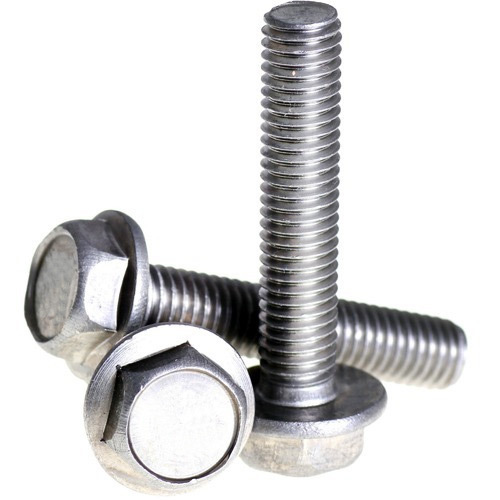

Flange Bolts and Screws

CODE : Flange-1021

Flange Bolts & Screws: As its name suggests, Flange Head Bolts & Screws have a circular flange attached right under their heads. These flanges distribute the load evenly and render four times the bearing area than of a standard hex screw. The built in washer eliminates use of external washer and thus makes its application faster yet stronger. The bearing face of flange can be plain or it may have serrations for providing resistance to loosening due to vibration.

Applicable Standards: DIN 6921 or as per drawing/ sample provided.

Applications: Automotive industry, electronic industry, general assembly.

Grade: 4.6, 8.8, 10.9

Finish: Electro Galvanised/ Hot Dip Galvanised/ Black Phospated/ zinc flake coating

Size Range: Metric M4 to M16 | Imperial: 1/4” to 5/8”

Style:

Flange Head Half Thread Bolt

Flange Head Full Thread Screw

Flange Head Full Thread Screw with Serrations

Flange Head Full Thread Screw with Serrations and Phillips Drive
